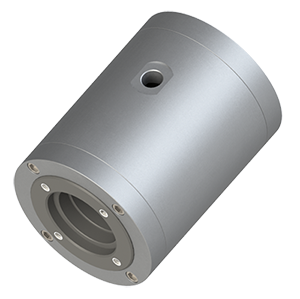

Series BMP-AP-DN40

Features Design : Pneumatically actuated pinch valve
Sealing principle : Eleastic lip seal
Mounting position : Any
Type of mounting : In-line installation
Direction of ow : Reversible
Valve function : 2/2 way,normally open
Reset method : Rebound resilience
Nominal pressure : PN10
Sleeve feature : Replaceable
Connection : G,BSP,NPT female thread
Contact
  • Product Description
  • Download


Technical Data
Ambient temperature [°C]-10.....+70
Storage temperature [°C]6......+20
Medium pressure [bar]0......6
Pressure diference [bar]2......3
Optimum control pressureMedium pressure+Pressure diference
Compressed air toISO 8573-1:2010
Alloy surfacePrimary color anodizing


Material
HousingAluminum alloy
SocketAnti-fire PA6
Seal or sleeveAnti-abrasive natural rubber


BMP-AP-DN40 dimension


Advantage

* Compact design             * Free passage               * No plugging

* 100% shut off                 * Easy maintenance       * Anti-abrasive

* Anti-corrosive              * Quick open-close



Application

Vacuum toilet system
